forma02aを試しました

forma02aを試してみました。温度が変化するエルボ形状の解析です。手順はとても簡単です。

Salome-Mecaを起動したら、AsterStudyを選択します。verdionはstableにしました。

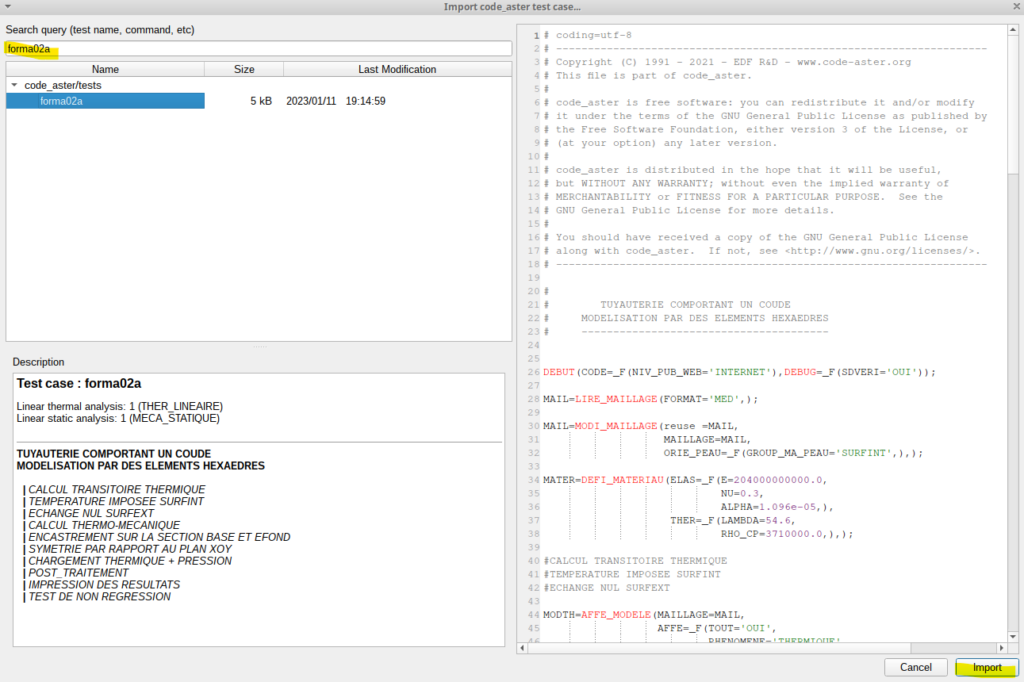

次にHistory Viewを選択して、上辺のOperationsからimport testcaseを選択します。

一番上の欄にforma02aと入力すると、下の窓にデータツリーが表示されます。
ツリーからforma02aを選択して右下のimportボタンをクリックします。

後は通常の解析と同じです。

commファイルは次のとおり

# coding=utf-8
# --------------------------------------------------------------------
# Copyright (C) 1991 - 2021 - EDF R&D - www.code-aster.org
# This file is part of code_aster.
#
# code_aster is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# code_aster is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with code_aster.  If not, see <http://www.gnu.org/licenses/>.
# --------------------------------------------------------------------
#
#        TUYAUTERIE COMPORTANT UN COUDE
#     MODELISATION PAR DES ELEMENTS HEXAEDRES
#     ---------------------------------------
DEBUT(identifier='1:1',
      CODE=_F(NIV_PUB_WEB='INTERNET'),
      DEBUG=_F(SDVERI='OUI'))

MAIL = LIRE_MAILLAGE(identifier='2:1',
                     FORMAT='MED',
                     UNITE=20)

MAIL = MODI_MAILLAGE(identifier='3:1',
                     reuse=MAIL,
                     MAILLAGE=MAIL,
                     ORIE_PEAU=_F(GROUP_MA_PEAU='SURFINT'))

# CALCUL TRANSITOIRE THERMIQUE
# TEMPERATURE IMPOSEE SURFINT
# ECHANGE NUL SURFEXT
MODTH = AFFE_MODELE(identifier='5:1',
                    AFFE=_F(MODELISATION='3D',
                            PHENOMENE='THERMIQUE',
                            TOUT='OUI'),
                    MAILLAGE=MAIL)

# CALCUL THERMO-MECANIQUE
# ENCASTREMENT SUR LA SECTION BASE ET EFOND
# SYMETRIE PAR RAPPORT AU PLAN XOY
# CHARGEMENT THERMIQUE + PRESSION
MODMECA = AFFE_MODELE(identifier='7:1',
                      AFFE=_F(MODELISATION='3D',
                              PHENOMENE='MECANIQUE',
                              TOUT='OUI'),
                      MAILLAGE=MAIL)

MATER = DEFI_MATERIAU(identifier='8:1',
                      ELAS=_F(ALPHA=1.096e-05,
                              E=204000000000.0,
                              NU=0.3),
                      THER=_F(LAMBDA=54.6,
                              RHO_CP=3710000.0))

CHMATER = AFFE_MATERIAU(identifier='9:1',
                        AFFE=_F(MATER=MATER,
                                TOUT='OUI'),
                        MAILLAGE=MAIL)

F_TEMP = DEFI_FONCTION(identifier='10:1',
                       NOM_PARA='INST',
                       VALE=(0, 20, 10, 70))

LINST = DEFI_LIST_REEL(identifier='11:1',
                       VALE=(0, 5, 10))

F_MULT = DEFI_FONCTION(identifier='12:1',
                       NOM_PARA='INST',
                       VALE=(0, 1, 10, 1))

CHARTH = AFFE_CHAR_THER_F(identifier='13:1',
                          MODELE=MODTH,
                          TEMP_IMPO=_F(GROUP_MA='SURFINT',
                                       TEMP=F_TEMP))

CHMECA = AFFE_CHAR_MECA(identifier='14:1',
                        DDL_IMPO=(_F(BLOCAGE=('DEPLACEMENT', 'ROTATION'),
                                     GROUP_MA=('EFOND', 'BASE')),
                                  _F(DZ=0,
                                     GROUP_MA='SYMETRIE')),
                        MODELE=MODMECA,
                        PRES_REP=_F(GROUP_MA='SURFINT',
                                    PRES=15000000.0))

TEMPE = THER_LINEAIRE(identifier='15:1',
                      CHAM_MATER=CHMATER,
                      ETAT_INIT=_F(VALE=20),
                      EXCIT=_F(CHARGE=CHARTH,
                               FONC_MULT=F_MULT),
                      INCREMENT=_F(LIST_INST=LINST),
                      MODELE=MODTH)

CHMECATH = AFFE_MATERIAU(identifier='16:1',
                         AFFE=_F(MATER=MATER,
                                 TOUT='OUI'),
                         AFFE_VARC=_F(EVOL=TEMPE,
                                      NOM_VARC='TEMP',
                                      TOUT='OUI',
                                      VALE_REF=20),
                         MAILLAGE=MAIL,
                         MODELE=MODMECA)

RESU = MECA_STATIQUE(identifier='17:1',
                     CHAM_MATER=CHMECATH,
                     EXCIT=_F(CHARGE=CHMECA),
                     LIST_INST=LINST,
                     MODELE=MODMECA)

# POST_TRAITEMENT
RESU = CALC_CHAMP(identifier='19:1',
                  reuse=RESU,
                  CONTRAINTE='SIEF_ELNO',
                  CRITERES='SIEQ_ELNO',
                  RESULTAT=RESU)

TA = POST_RELEVE_T(identifier='20:1',
                   ACTION=_F(INTITULE='VALEMAX',
                             NOM_CHAM='SIEQ_ELNO',
                             OPERATION='EXTREMA',
                             RESULTAT=RESU))

TS = MACR_LIGN_COUPE(identifier='21:1',
                     LIGN_COUPE=_F(COOR_EXTR=(0.2, 3, 0),
                                   COOR_ORIG=(0.18, 3, 0),
                                   NB_POINTS=10,
                                   TYPE='SEGMENT'),
                     NOM_CHAM='SIEF_ELNO',
                     RESULTAT=RESU)

# IMPRESSION DES RESULTATS
IMPR_TABLE(identifier='23:1',
           NOM_PARA='SIYY',
           TABLE=TS,
           UNITE=8)

IMPR_RESU(identifier='24:1',
          FORMAT='MED',
          RESU=(_F(MAILLAGE=MAIL,
                   RESULTAT=RESU),
                _F(RESULTAT=TEMPE)),
          UNITE=80)

# TEST DE NON REGRESSION
TEST_RESU(identifier='26:1',
          RESU=(_F(GROUP_NO='AI1',
                   INST=10,
                   NOM_CHAM='TEMP',
                   NOM_CMP='TEMP',
                   RESULTAT=TEMPE,
                   VALE_CALC=70),
                _F(GROUP_NO='N_TEST',
                   INST=0,
                   NOM_CHAM='DEPL',
                   NOM_CMP='DX',
                   RESULTAT=RESU,
                   VALE_CALC=-0.000451915834812),
                _F(INST=10,
                   NOM_CHAM='SIEQ_ELNO',
                   NOM_CMP='VMIS',
                   RESULTAT=RESU,
                   TYPE_TEST='MAX',
                   VALE_CALC=194395274.29)))

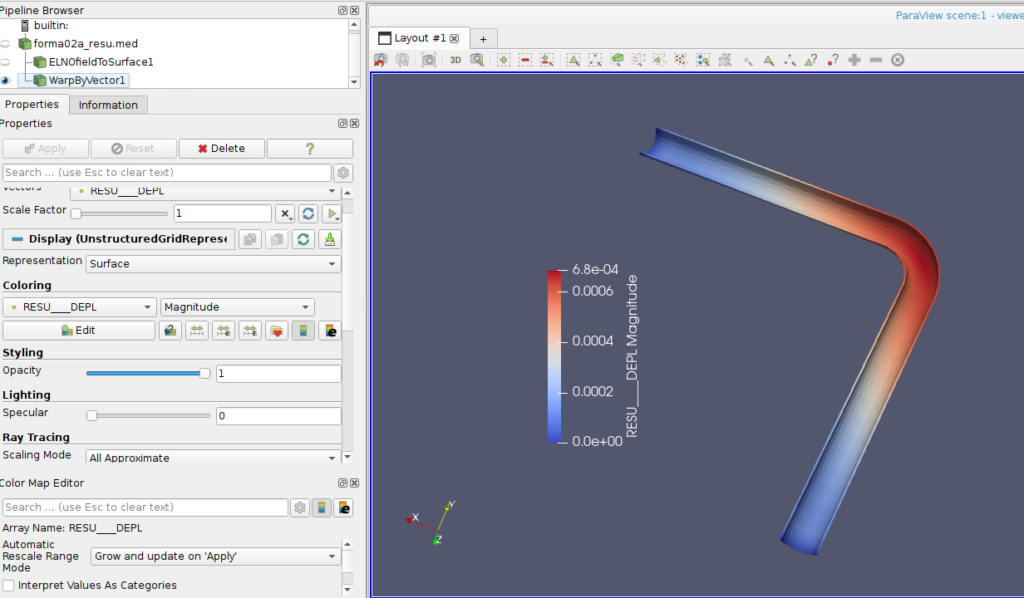

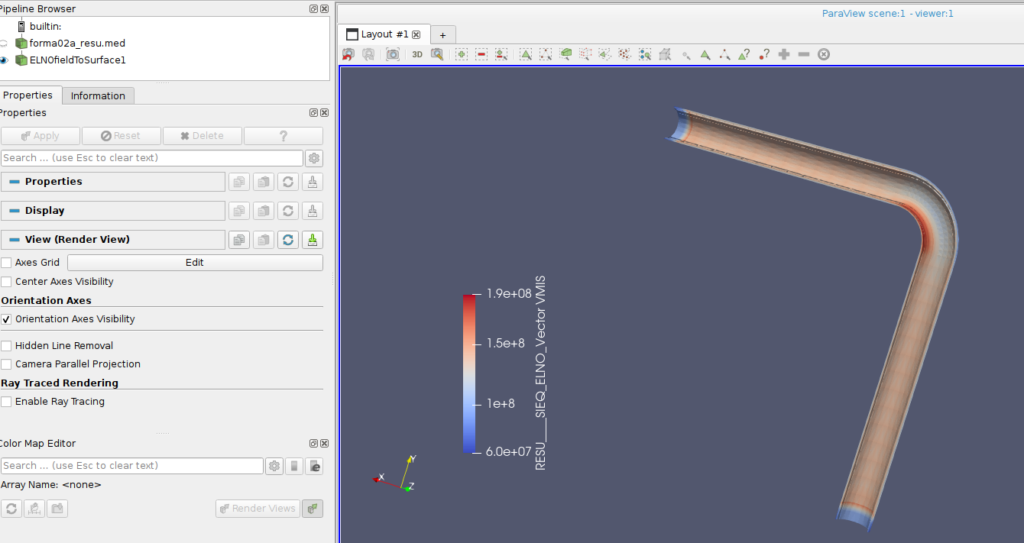

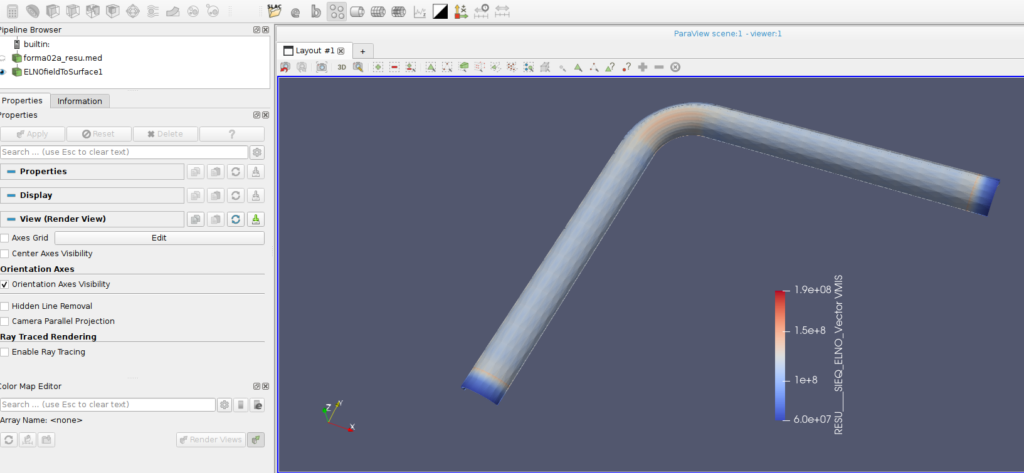

FIN(identifier='27:1',
    )
